A1 Alcazar HRB

SAIS Compliant Crash Rated Hydraulic Roadblocker

ASTM F2656 M50 P1

Crash Rated Hydraulic Road Blocker, Wedge Barrier, Crash Barrier, Vehicle Barrier, Anti-Ram Barrier, HVM System, Vehicle Blocker

Scroll Down

About A1 Alcazar Hydraulic Roadblocker

High security solution that can’t be breached-
The A1 Alcazar Hydraulic Road Blocker is a top-notch high security system that aids Hostile Vehicle Mitigation. It is installed at the entrance at industrial and high-security sites for the ultimate protection. This innovative road blocker can halt any unauthorized vehicle within 1 meter of impact by rising in less than 1.5 seconds!

A1 Fence Arabia has developed the most innovative crash rated road blocker to date that is unbreachable and is precisely constructed to completely immobilize a large, high-speed vehicle for the utmost security against unwanted vehicle access. It is much more superior to traditional wedge barriers in terms of its unique three finger design, noiseless smooth operation and low maintenance. As the width of each finger (steel beam) is less than the width of the tyre, there is no axle load limitation.

Test Video

This Hydraulic Roadblocker, proudly manufactured in the KSA, is a game-changer for critical sectors like Oil & Gas, Energy, Water, Power & Defence. Certified with ASTM F2656 M50 P1 our Wedge Barrier demonstrates the capability to halt a 6.8-tonne vehicle traveling at 50mph within a penetration distance of less than 1m.

Features

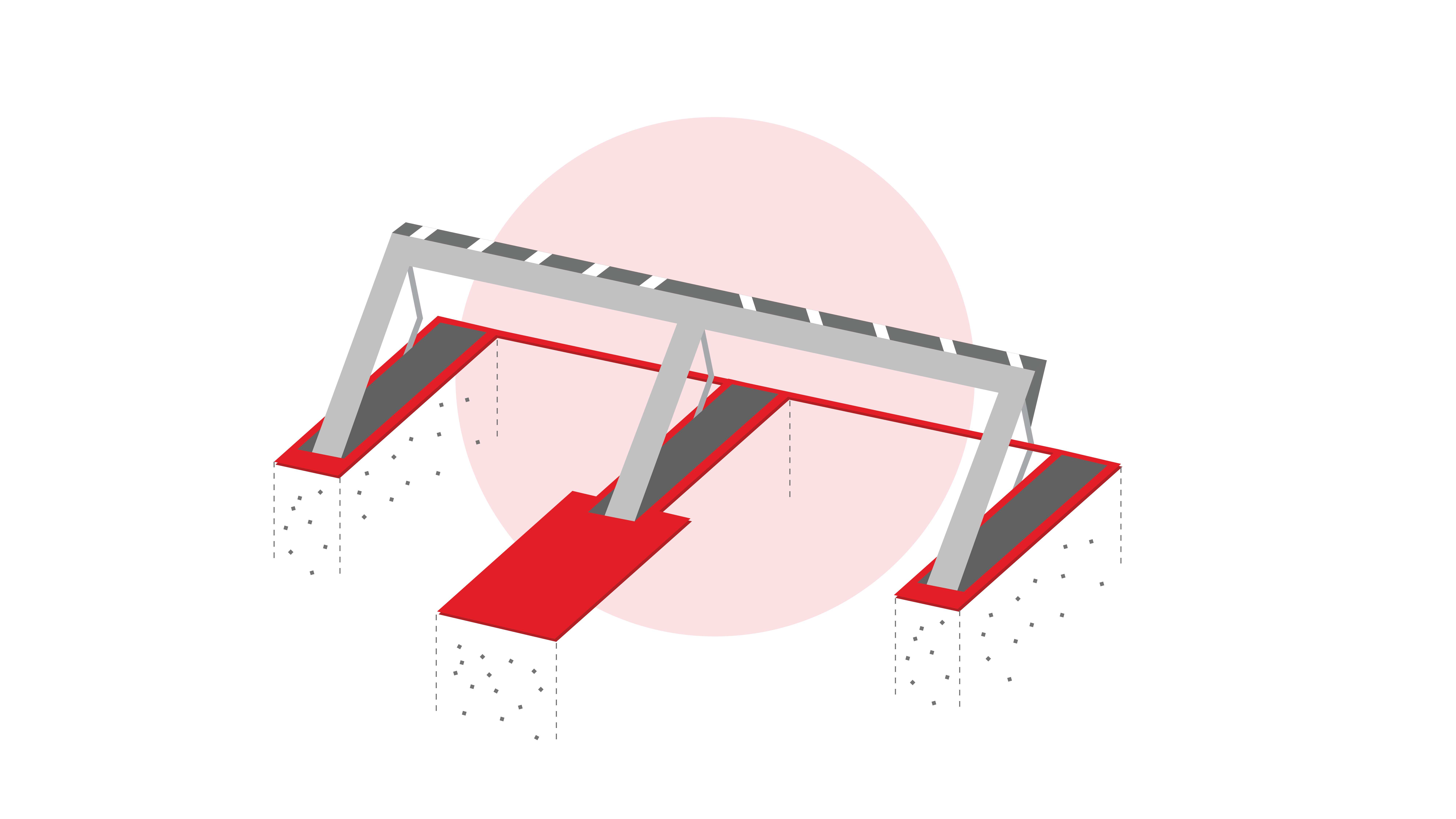

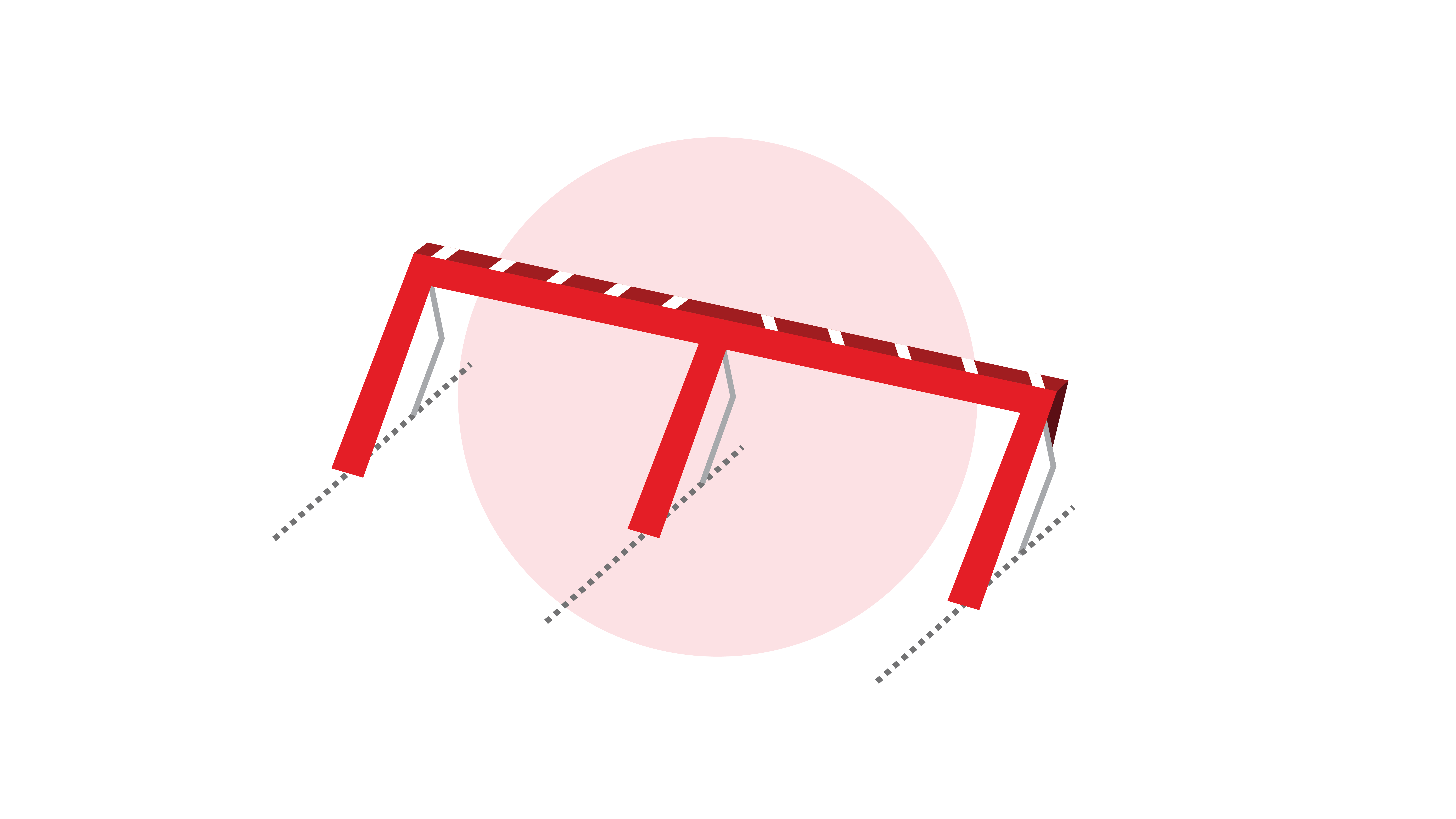

Unique Three Finger Design

Our crash-rated wedge barrier stands out with its unique three-finger design, providing significant benefits, including minimal maintenance. Unlike conventional plate barriers that often rattle and are prone to breaking or bending under the entire vehicle's weight, our system is designed differently. The wedge barrier’s flush surface allows the vehicle weight to be seamlessly transferred into the concrete, eliminating weight restrictions and ensuring durability over time.

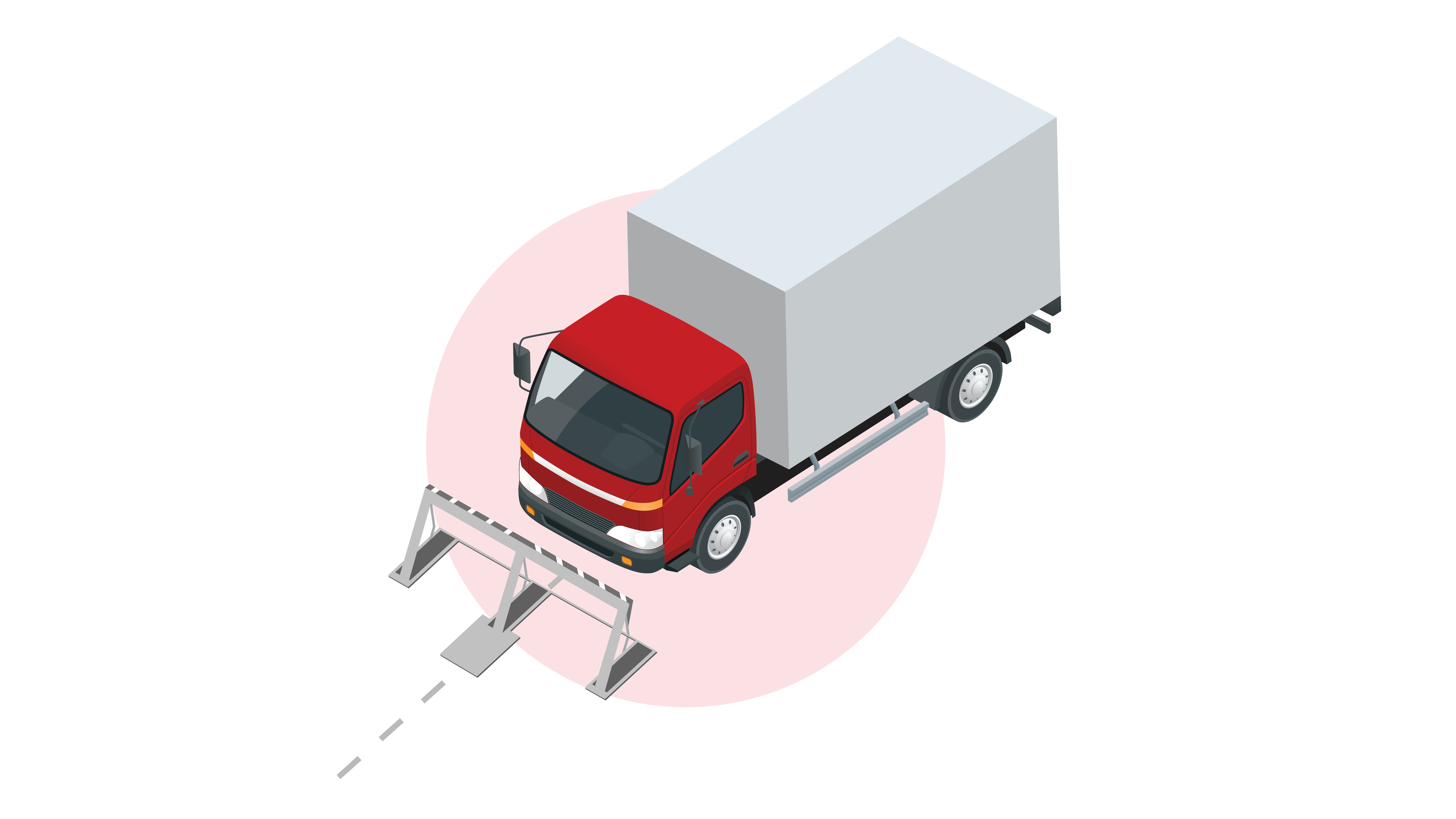

No Axle Load Limit

This innovative road blocker has no axle load restrictions, as the narrow steel fingers distribute the vehicle’s weight directly into the concrete foundation. This ensures that vehicles of any size, axle configuration, or load capacity can be effectively stopped without compromising the barrier’s strength or functionality.

Shallow Foundation for Easy Installation

Designed with a shallow foundation of just 16 inches, the road blocker significantly reduces civil work and installation costs. Its compact foundation design makes it suitable for projects where deeper excavations are not feasible, while still maintaining uncompromised structural strength and crash resistance.

Intelligent Hydraulic Power Unit (HPU)

The Hydraulic Power Unit is engineered for flexibility and long-term reliability. It can be installed up to 25 meters away from the barrier to suit site layouts, is built using trusted global components for durability, and integrates easily with third-party security systems. The unit also includes dual backup batteries, enabling the road blocker to function for up to eight cycles during a power failure, ensuring uninterrupted security.

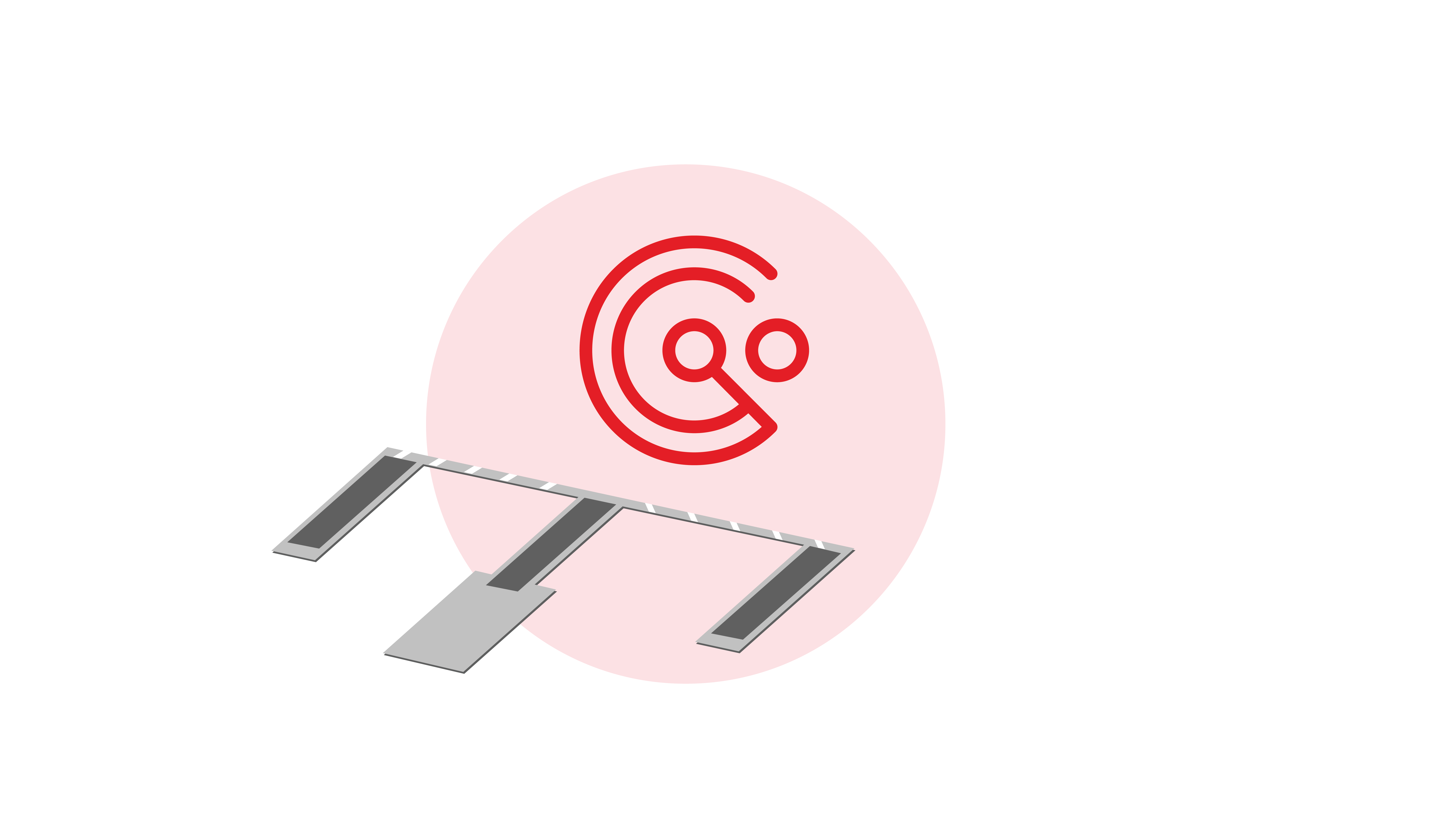

Safety Loop Detection

Equipped with dual safety loops, the system provides advanced protection during daily operations. It prevents the barrier from being raised when a vehicle is on the plate, thereby reducing the risk of accidental damage, while also detecting entry and exit movements to ensure operational safety.

Emergency Mode with Fail-Safe Operation

In emergencies, the road blocker can rise in under 1.5 seconds, bypassing all safety features for instant protection. A glass-protected emergency buttonne prevents accidental activation, while flashing lights and sirens provide clear warning signals. Once engaged, the blocker remains locked in its raised position until manually reset by authorized personnel, making it a highly secure and dependable solution for critical situations.

Features

Unique Three Finger Design

No Axle Load Limit

Shallow Foundation for Easy Installation

Intelligent Hydraulic Power Unit (HPU)

Safety Loop Detection

Emergency Mode with Fail-Safe Operation

What makes our Roadblocker better than the others?

Our crash-rated road blocker stands out with its unique three-finger design, providing significant benefits, including minimal maintenance. Unlike conventional plate barriers that often rattle and are prone to breaking or bending under the entire vehicle weight, our system is designed differently. The road blocker's flush surface allows the vehicle weight to be seamlessly transferred into the concrete, eliminating weight restrictions and ensuring durability over time.

The Hydraulic Power Unit (HPU) is not fixed with the Hydraulic Road Blocker (HRB) and can be positioned within a radius of 20-25 meters. This flexibility in placement offers the advantage of designing layouts with greater flexibility.

The Hydraulic Power Unit (HPU) is crafted using secure components sourced from globally renowned companies such as Siemens, guaranteeing extended lifespan and unwavering reliability. The HPU is also network-controlled for easy third party software integration.

The HPU incorporates two batteries to power the electronics in the event of a power failure, ensuring the continuous operation of the road blocker for up to 8 cycles.

Cleaning is a breeze with the provided drain pipe, effectively eliminating the problem of water clogging. This feature ensures easier maintenance.

For added safety, two safety loops are positioned at both the front and back of the road blocker. This precautionary measure detects approaching vehicles from both sides, preventing accidental damage by ensuring the road blocker isn't raised during normal operation mode due to any oversight.

During emergency operation mode, all safety features are bypassed. The emergency operation buttonne is safeguarded by glass to avoid accidental presses. This buttonne's advantage lies in swiftly raising the road blocker in under 1.5 seconds for a prompt response in emergencies. In case of an emergency, the alarm light flashes continuously, accompanied by a siren noise. Importantly, the road blocker cannot be lowered without manual reset by the authorized authority in such scenarios.

When the road blocker is integrated with another security product, such as a boom barrier, it will automatically elevate to a secure position in emergency operation if the integrity of the boom barrier security is compromised or breached.

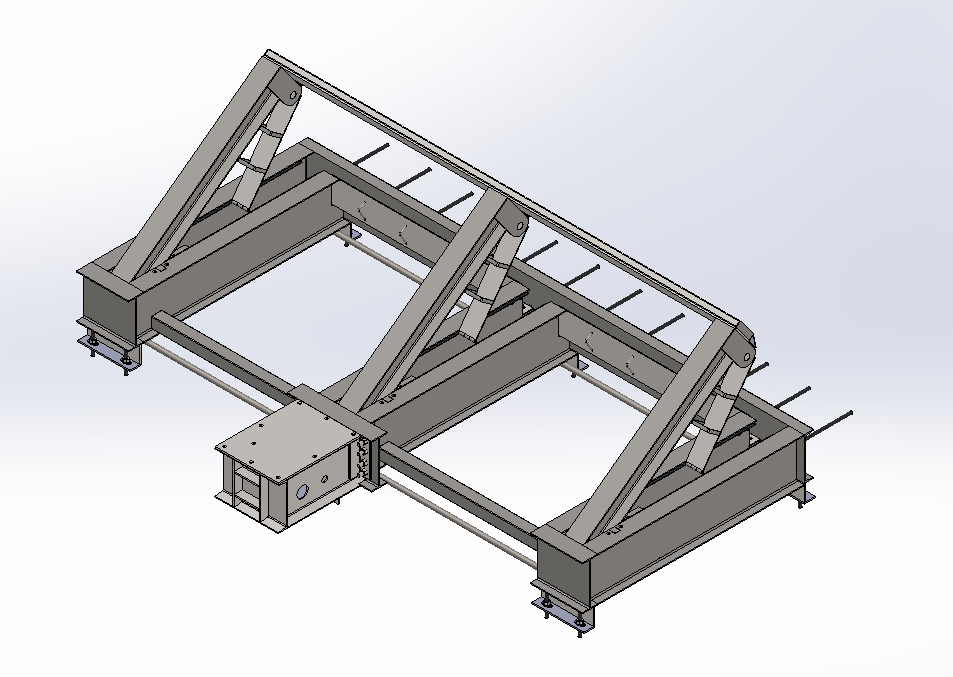

Specifications

PARAMETERS	SPECIFICATIONS
Blocking Width	10 to 18 feet
Blocking Height	42 inches
Foundation Depth	16 inches (above ground)
Available Finishes	RAL 9005, RAL 3020
Optional Finishes	RAL 7021, RAL 1021
Normal Operation	3 -5 secs (Deploy/Retract)
Emergency Operation	Less than 1.5 secs
Crash Rating	ASTM F2656 M50 P1
Impact Energy	1698.68 KJ, 6.8T @ 50mph
Temperature Range	-20 to +60 degree celsius
Cycling Time	6 to 8 complete cycle/ minute
Safety	Dual loop detector for vehicle safety
Rated Pressure	max. 3000 Psi (200 bar)

Application Areas

Government Facilities

Security is paramount for government facilities as they house sensitive information, critical operations, and key personnel. Our Road Blocker plays a pivotal role in enhancing security by providing a powerful physical barrier against unauthorized vehicle intrusion

Military Base

Military bases serve as critical hubs for defense operations and Hostile vehicle attacks pose a substantial threat to these installations. Our Road Blocker offers a strategic solution by serving as a reliable barricade that can withstand even the most forceful impacts

Airports/Seaports

Security holds paramount significance for airports and seaports and our Road Blocker emerges as a proactive solution, fortifying security by acting as an effective barrier against unauthorized vehicle access

Critical Infrastructure

Security stands as a pivotal concern for critical infrastructure, and the vulnerability to hostile vehicle attacks necessitates robust protective solutions. Our Road Blocker emerges as a vital asset in this context, reinforcing security by serving as a formidable barrier

Corporate Campuses

The potential for hostile vehicle threats at these bustling centers underscores the need for robust protective measures. Our Road Blocker emerges as a proactive solution, that can withstand high-impact collisions and deter potential threats

Data Centers

By integrating our Road Blocker, data centers can elevate their security posture, ensuring uninterrupted digital services and the protection of sensitive information from potential risks.
